KMTA 19 BGL
6866018759-SomunLock nuts
Quote and order options

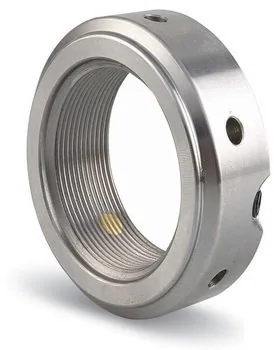

BGL KMTA 19 lock nut: thread M 95x2, nut outside diameter 125 mm, width 32 mm. Net weight 1.07 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KMTA 19 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KMTA 19
- Lock nut outer diameter
- 125 mm
- Lock nut width
- 32 mm
- SKU
- 6866018759-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 1.07 kg
- Volumetric weight (desi)
- 0.3644
Weight
- Catalog net weight
- 1.07 kg
Dimensions
- Lock nut projection diameter
- 114 mm
- Locking screw tightening torque
- 35 Nm
- Spanner pin hole N1
- 6.4 mm
- Spanner pin hole N2
- 8 mm
Properties
- Nominal thread
- M 95x2 mm
- Nut locking screw
- M 10
