KMTA 6 BGL
6866018746-SomunLock nuts
Quote and order options

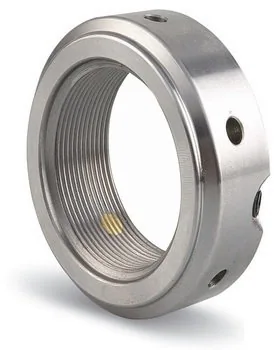

BGL KMTA 6 lock nut: thread M 30x1.5, nut outside diameter 48 mm, width 20 mm. Net weight 0.15 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KMTA 6 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KMTA 6
- Lock nut outer diameter
- 48 mm
- Lock nut width
- 20 mm
- SKU
- 6866018746-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 0.15 kg
- Volumetric weight (desi)
- 0.0617
Weight
- Catalog net weight
- 0.15 kg
Dimensions
- Lock nut projection diameter
- 40 mm
- Locking screw tightening torque
- 8 Nm
- Spanner pin hole N1
- 4.3 mm
- Spanner pin hole N2
- 5 mm
Properties
- Nominal thread
- M 30x1,5 mm
- Nut locking screw
- M 6
