LENN 206 R3
6866016059-YatakliFlanged ball bearing units
Quote and order options

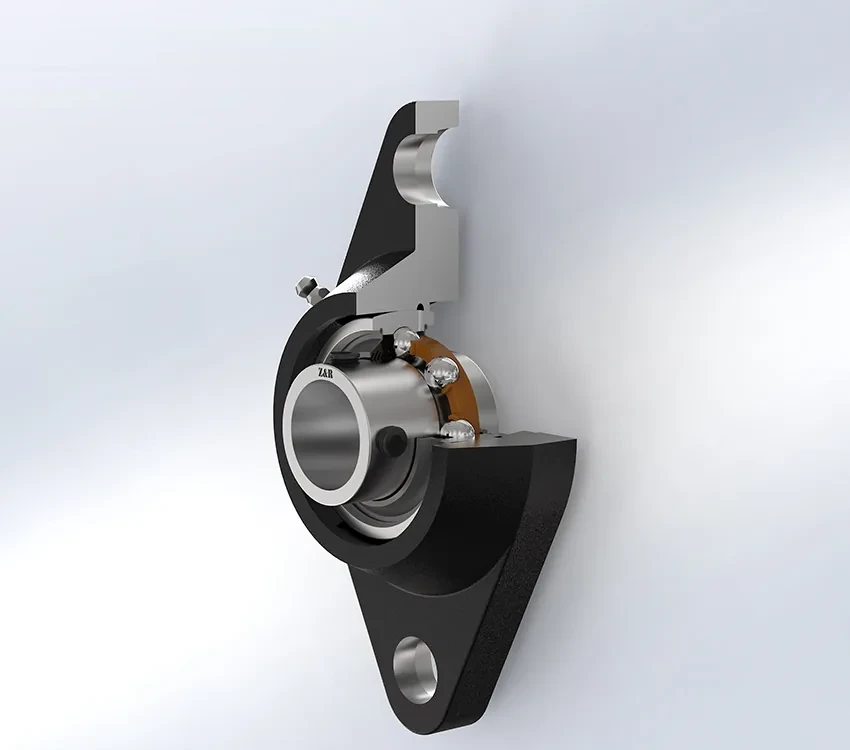

Z&R LENN 206 R3 mounted bearing unit. Bore diameter 30 mm, width 38 mm. Basic dynamic load rating 19.5 kN, basic static load rating 11.3 kN. Weight 0.85 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
LENN 206 R3 technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- LENN 206 R3
- Overall length
- 80 mm
- Overall width
- 40.2 mm
- Mounting hole spacing
- 117 mm
- Housing total width
- 30.5 mm
- Bore diameter (d)
- 30 mm
- Width (B)
- 38 mm
- Basic dynamic load rating C
- 19.5 kN
- Housing flange thickness
- 13.5 mm
- Basic static load rating C0
- 11.3 kN
- Mounting hole diameter
- 16 mm
- Fatigue load limit Pu
- 0.475 kN
- Housing height
- 148 mm
- SKU
- 6866016059-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 0.85 kg
