LENN 208 R3
6866016060-YatakliFlanged ball bearing units
Quote and order options

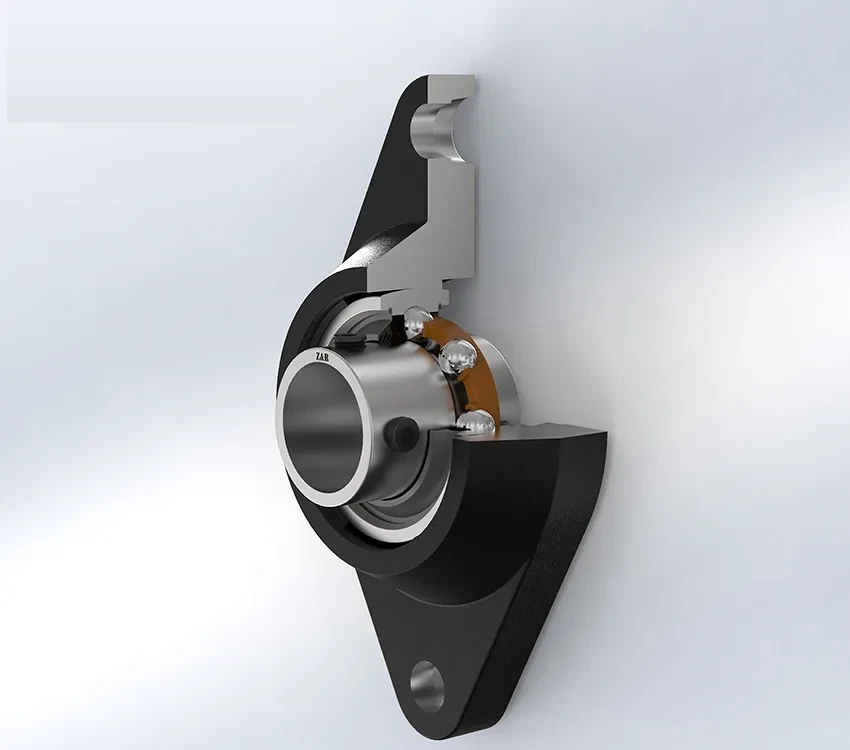

Z&R LENN 208 R3 mounted bearing unit. Bore diameter 40 mm, width 49.2 mm. Basic dynamic load rating 30.7 kN, basic static load rating 19 kN. Weight 1.69 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
LENN 208 R3 technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- LENN 208 R3
- Overall length
- 100 mm
- Overall width
- 51.2 mm
- Mounting hole spacing
- 144 mm
- Housing total width
- 36 mm
- Bore diameter (d)
- 40 mm
- Width (B)
- 49.2 mm
- Basic dynamic load rating C
- 30.7 kN
- Housing flange thickness
- 16 mm
- Basic static load rating C0
- 19 kN
- Mounting hole diameter
- 14 mm
- Fatigue load limit Pu
- 0.798 kN
- Housing height
- 175 mm
- SKU
- 6866016060-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 1.69 kg
