MS 31/900 BGL
6866018878-AksesuarLock washers
Quote and order options

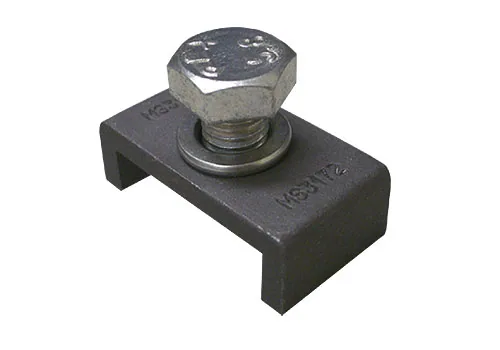

BGL MS 31/900 locking clip: plate width 70 mm, thickness 7 mm, screw M24x50. Compatible nut: HM 31/900. Net weight 0.413 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
MS 31/900 BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock washers
- Part number
- MS 31/900
- SKU
- 6866018878-Aksesuar
- HS code (6-digit)
- 731829
- CN code (8-digit)
- 73182900
- GTİP (Turkish customs tariff number, 12-digit)
- 731829000000
- Country of origin
- Brazil
- Net weight
- 0.41 kg
- Volumetric weight (desi)
- 0.0212
Compatibility
- Lock nuts assembled using this product
- HM 31/900
Weight
- Catalog net weight
- 0.413 kg
Dimensions
- Lockplate height
- 21 mm
- Lockplate internal width
- 76 mm
- Lockplate screw hole diameter
- 26 mm
- Lockplate width
- 70 mm
- Part thickness
- 7 mm
Properties
- Lockplate screw
- M24x50
