NA 204-12/V3/ER--RB3
6866015787-RulmanNA series mounted bearing units
Quote and order options

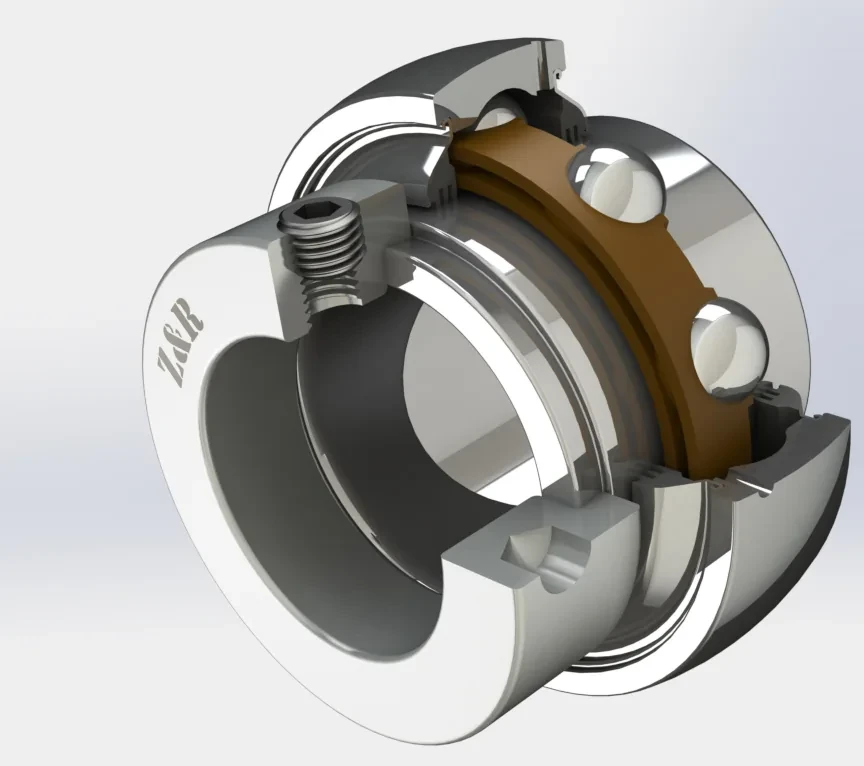

NA 204-12/V3/ER--RB3, Z&R ball bearing. Bore diameter 19.05 mm, outside diameter 47 mm, width 34 mm. Basic load ratings: dynamic 12.8 kN, static 6.7 kN. Weight 0.2 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
NA 204-12/V3/ER--RB3 technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / NA series mounted bearing units
- Part number
- NA 204-12/V3/ER--RB3
- Bore diameter (d)
- 19.05 mm
- Outside diameter (D)
- 47 mm
- Width (B)
- 34 mm
- Basic dynamic load rating C
- 12.8 kN
- Basic static load rating C0
- 6.7 kN
- Outer ring width
- 16 mm
- Groove distance
- 17 mm
- Overall height
- 43.3 mm
- Lubrication hole distance
- 4.4 mm
- Set screw hole distance
- 5 mm
- Center diameter
- 33.9 mm
- Eccentric collar outer diameter
- 33.3 mm
- Eccentric collar width
- 13.5 mm
- SKU
- 6866015787-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900011
- Country of origin
- China
- Net weight
- 0.2 kg
