NA 206-18/V3/ER--RB3
6866015795-RulmanNA series mounted bearing units
Quote and order options

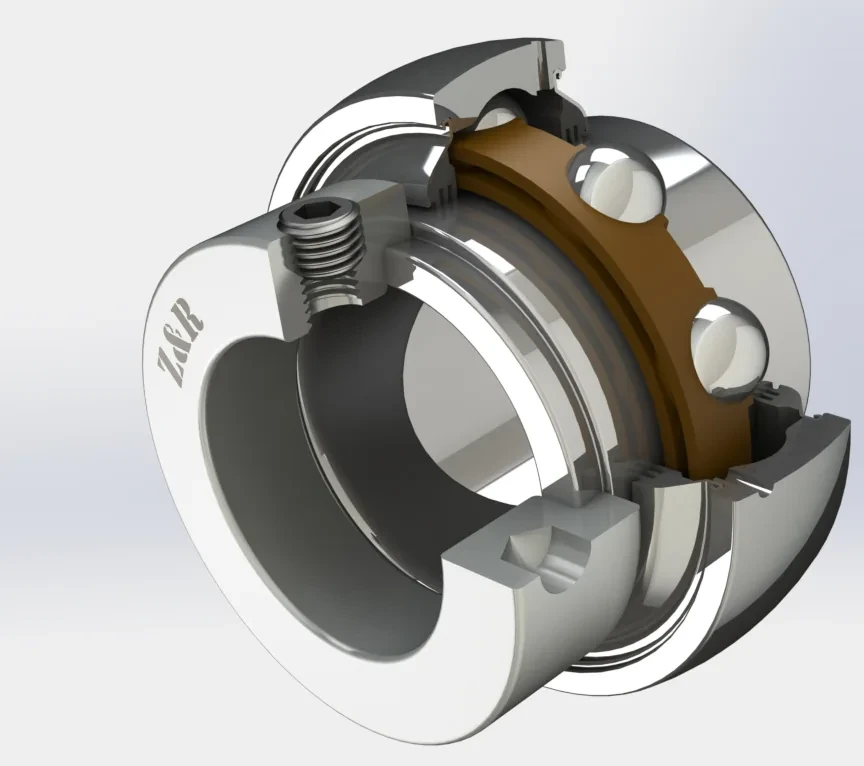

NA 206-18/V3/ER--RB3, Z&R ball bearing. Bore diameter 28.575 mm, outside diameter 62 mm, width 36.4 mm. Basic load ratings: dynamic 19.6 kN, static 11.2 kN. Weight 0.4 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
NA 206-18/V3/ER--RB3 technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / NA series mounted bearing units
- Part number
- NA 206-18/V3/ER--RB3
- Bore diameter (d)
- 28.575 mm
- Outside diameter (D)
- 62 mm
- Width (B)
- 36.4 mm
- Basic dynamic load rating C
- 19.6 kN
- Basic static load rating C0
- 11.2 kN
- Outer ring width
- 19 mm
- Groove distance
- 18.2 mm
- Overall height
- 48.1 mm
- Lubrication hole distance
- 5 mm
- Set screw hole distance
- 6 mm
- Center diameter
- 46 mm
- Eccentric collar outer diameter
- 44.5 mm
- Eccentric collar width
- 15.9 mm
- SKU
- 6866015795-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900012
- Country of origin
- China
- Net weight
- 0.4 kg
