NA220/V3/ER--RB3
6866015861-RulmanNA series mounted bearing units
Quote and order options

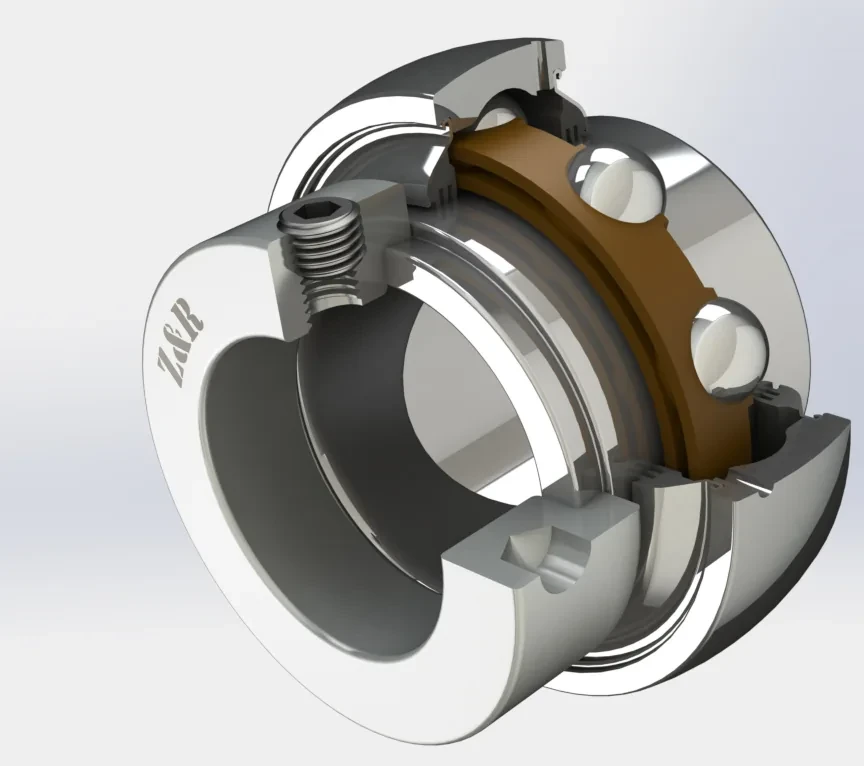

NA220/V3/ER--RB3, Z&R ball bearing. Bore diameter 100 mm, outside diameter 180 mm, width 57.5 mm. Basic load ratings: dynamic 107.9 kN, static 78.4 kN. Weight 5.3 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
NA220/V3/ER--RB3 technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / NA series mounted bearing units
- Part number
- NA220/V3/ER--RB3
- Bore diameter (d)
- 100 mm
- Outside diameter (D)
- 180 mm
- Width (B)
- 57.5 mm
- Basic dynamic load rating C
- 107.9 kN
- Basic static load rating C0
- 78.4 kN
- Outer ring width
- 36 mm
- Groove distance
- 25.5 mm
- Overall height
- 82.7 mm
- Lubrication hole distance
- 12.1 mm
- Set screw hole distance
- 13 mm
- Center diameter
- 140 mm
- Eccentric collar outer diameter
- 139.7 mm
- Eccentric collar width
- 31.8 mm
- SKU
- 6866015861-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900013
- Country of origin
- China
- Net weight
- 5.3 kg
