NA312-38/V3/ER--RB3
6866015923-RulmanNA series mounted bearing units
Quote and order options

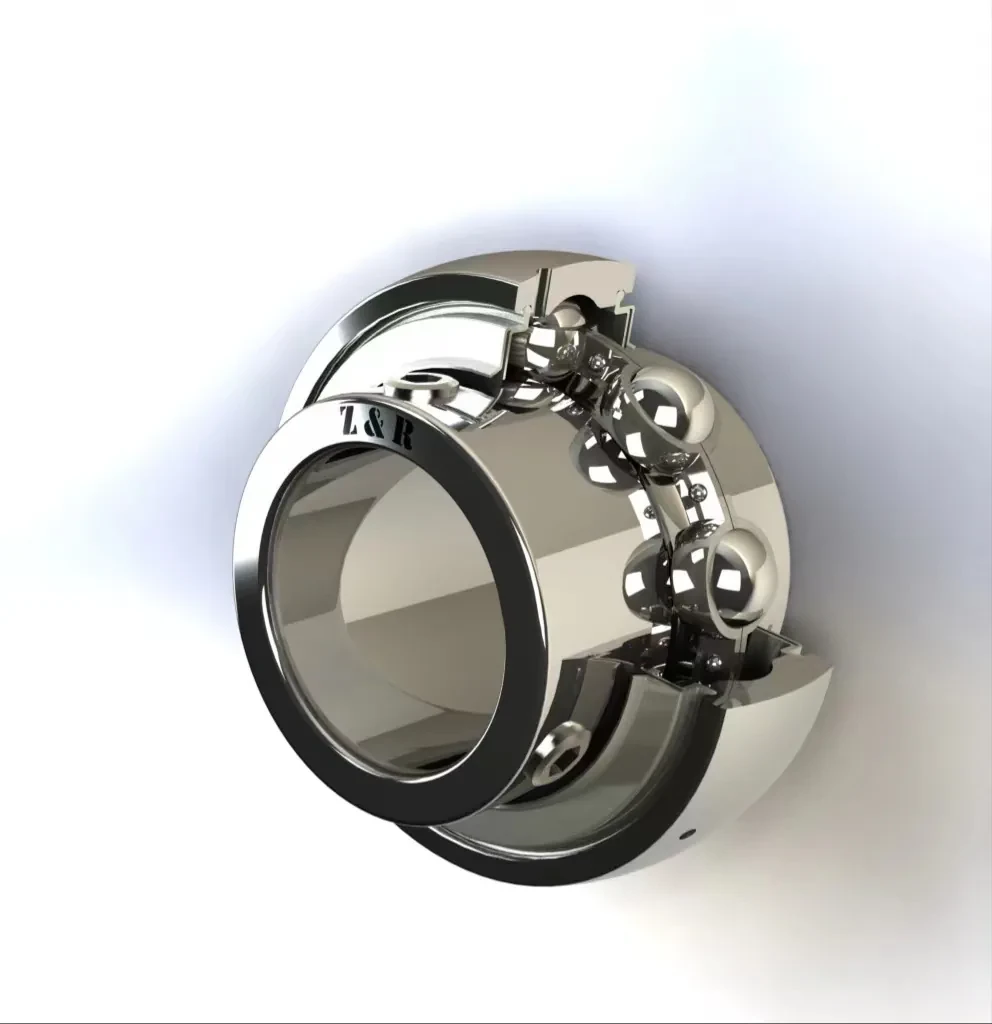

NA312-38/V3/ER--RB3, Z&R ball bearing. Bore diameter 90.33 mm, outside diameter 130 mm, width 64 mm. Basic load ratings: dynamic 71.5 kN, static 44.8 kN. Weight 2.35 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
NA312-38/V3/ER--RB3 technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / NA series mounted bearing units
- Part number
- NA312-38/V3/ER--RB3
- Bore diameter (d)
- 90.33 mm
- Outside diameter (D)
- 130 mm
- Width (B)
- 64 mm
- Basic dynamic load rating C
- 71.5 kN
- Basic static load rating C0
- 44.8 kN
- Outer ring width
- 36 mm
- Groove distance
- 31 mm
- Overall height
- 81.3 mm
- Lubrication hole distance
- 11.3 mm
- Set screw hole distance
- 8.5 mm
- Center diameter
- 95 mm
- Eccentric collar outer diameter
- 89 mm
- Eccentric collar width
- 23.9 mm
- SKU
- 6866015923-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900013
- Country of origin
- China
- Net weight
- 2.35 kg
