NA314-44/V3/ER--RB3
6866015936-RulmanNA series mounted bearing units
Quote and order options

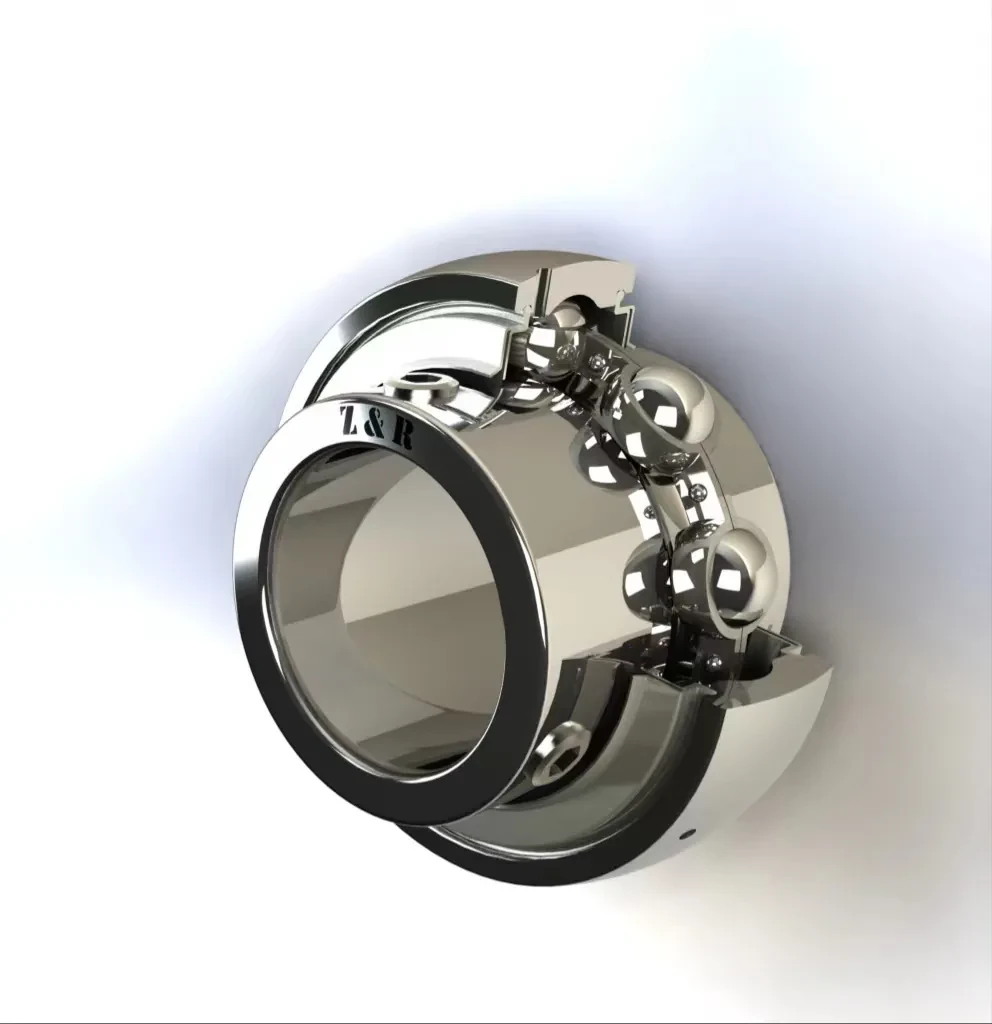

NA314-44/V3/ER--RB3, Z&R ball bearing. Bore diameter 69.85 mm, outside diameter 150 mm, width 68.3 mm. Basic load ratings: dynamic 104.3 kN, static 68 kN. Weight 4.5 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
NA314-44/V3/ER--RB3 technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / NA series mounted bearing units
- Part number
- NA314-44/V3/ER--RB3
- Bore diameter (d)
- 69.85 mm
- Outside diameter (D)
- 150 mm
- Width (B)
- 68.3 mm
- Basic dynamic load rating C
- 104.3 kN
- Basic static load rating C0
- 68 kN
- Outer ring width
- 42 mm
- Groove distance
- 34.1 mm
- Overall height
- 91.9 mm
- Lubrication hole distance
- 13 mm
- Set screw hole distance
- 12 mm
- Center diameter
- 110 mm
- Eccentric collar outer diameter
- 102 mm
- Eccentric collar width
- 30.2 mm
- SKU
- 6866015936-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900013
- Country of origin
- China
- Net weight
- 4.5 kg
