OH 2332H BGL
6866017623-MansonAdapter sleeves
Quote and order options

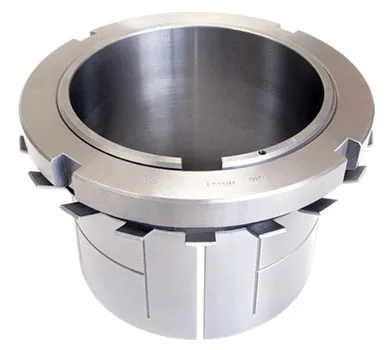

BGL OH 2332H hydraulic adapter sleeve; shaft diameter 140 mm, bearing bore diameter 160 mm, thread M 160x3, overall length 147 mm, taper 1:12. Net weight 8.155 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OH 2332H BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OH 2332H
- Lock nut outer diameter
- 210 mm
- Overall length
- 147 mm
- SKU
- 6866017623-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 8.16 kg
- Volumetric weight (desi)
- 2.9448
Weight
- Catalog net weight
- 8.155 kg
Dimensions
- Compatible bearing bore
- 160 mm
- Shaft diameter
- 140 mm
Properties
- Nominal thread
- M 160x3 mm
- Oil injection hole thread
- M6
- Taper ratio
- 1:12
