OH 2340HL BGL
6866017711-MansonAdapter sleeves
Quote and order options

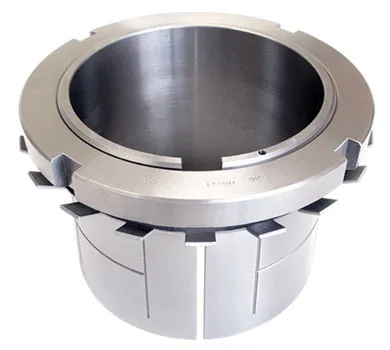

BGL OH 2340HL hydraulic adapter sleeve; shaft diameter 180 mm, bearing bore diameter 200 mm, thread M 200x3, overall length 176 mm, taper 1:12. Net weight 12.164 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OH 2340HL BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OH 2340HL
- Lock nut outer diameter
- 240 mm
- Overall length
- 176 mm
- SKU
- 6866017711-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 12.16 kg
- Volumetric weight (desi)
- 4.4165
Weight
- Catalog net weight
- 12.164 kg
Dimensions
- Compatible bearing bore
- 200 mm
- Shaft diameter
- 180 mm
Properties
- Nominal thread
- M 200x3 mm
- Oil injection hole thread
- M6
- Taper ratio
- 1:12
