OH 24038H BGL
6866017697-MansonAdapter sleeves
Quote and order options

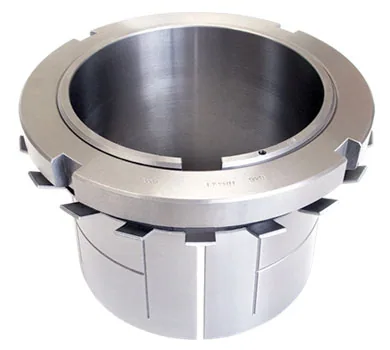

BGL OH 24038H hydraulic adapter sleeve; shaft diameter 170 mm, bearing bore diameter 190 mm, thread M 190x3, overall length 143 mm, taper 1:30. Net weight 8.4 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OH 24038H BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OH 24038H
- Lock nut outer diameter
- 220 mm
- Overall length
- 143 mm
- SKU
- 6866017697-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 8.4 kg
- Volumetric weight (desi)
- 3.1296
Weight
- Catalog net weight
- 8.4 kg
Dimensions
- Compatible bearing bore
- 190 mm
- Shaft diameter
- 170 mm
Properties
- Nominal thread
- M 190x3 mm
- Oil injection hole thread
- M6
- Taper ratio
- 1:30
