OH 24196H BGL
6866017933-MansonAdapter sleeves
Quote and order options

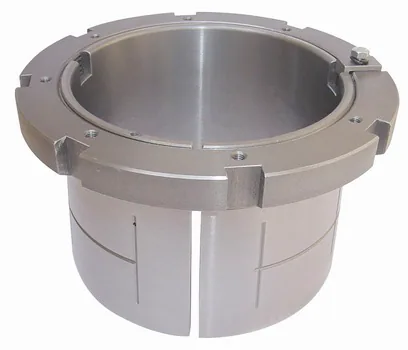

BGL OH 24196H hydraulic adapter sleeve: shaft diameter 450 mm, bearing bore diameter 480 mm, thread Tr 480x5, overall length 408 mm, taper 1:30. Net weight 152 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OH 24196H BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OH 24196H
- Lock nut outer diameter
- 620 mm
- Overall length
- 408 mm
- SKU
- 6866017933-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 152 kg
- Volumetric weight (desi)
- 72.1344
Weight
- Catalog net weight
- 152 kg
Dimensions
- Compatible bearing bore
- 480 mm
- Shaft diameter
- 450 mm
Properties
- Nominal thread
- Tr 480x5 mm
- Oil injection hole thread
- M8
- Taper ratio
- 1:30
