OH 3144HTL BGL
6866017726-MansonAdapter sleeves
Quote and order options

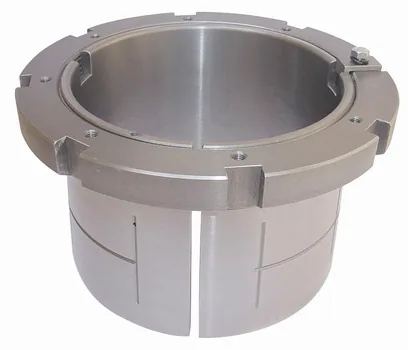

BGL OH 3144HTL hydraulic adapter sleeve: shaft diameter 200 mm, bearing bore diameter 220 mm, thread Tr 220x4, overall length 156 mm, taper 1:12.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OH 3144HTL BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OH 3144HTL

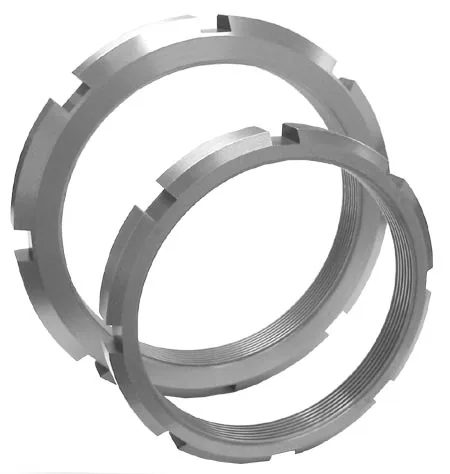

- Lock nut outer diameter
- 260 mm
- Overall length
- 156 mm
- SKU
- 6866017726-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 13.2 kg
- Volumetric weight (desi)
- 4.5995
Weight
- Catalog net weight
- 13.195 kg
Dimensions
- Compatible bearing bore
- 220 mm
- Shaft diameter
- 200 mm
Properties
- Nominal thread
- Tr 220x4 mm
- Oil injection hole thread
- M6
- Taper ratio
- 1:12
