OH 3188HTL BGL
6866017904-MansonAdapter sleeves
Quote and order options

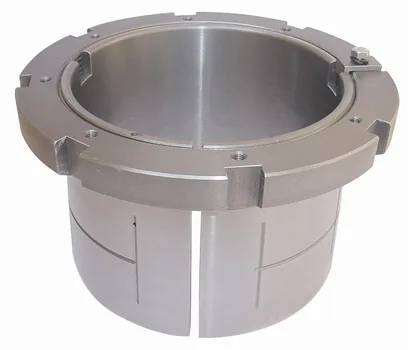

BGL OH 3188HTL hydraulic adapter sleeve: shaft diameter 410 mm, bearing bore diameter 440 mm, thread Tr 440x5, overall length 297 mm, taper 1:12. Net weight 77 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OH 3188HTL BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OH 3188HTL
- Lock nut outer diameter
- 520 mm
- Overall length
- 297 mm
- SKU
- 6866017904-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 77 kg
- Volumetric weight (desi)
- 40.0316
Weight
- Catalog net weight
- 77 kg
Dimensions
- Compatible bearing bore
- 440 mm
- Shaft diameter
- 410 mm
Properties
- Nominal thread
- Tr 440x5 mm
- Oil injection hole thread
- M8
- Taper ratio
- 1:12
