OH 3196HTL BGL
6866017926-MansonAdapter sleeves
Quote and order options

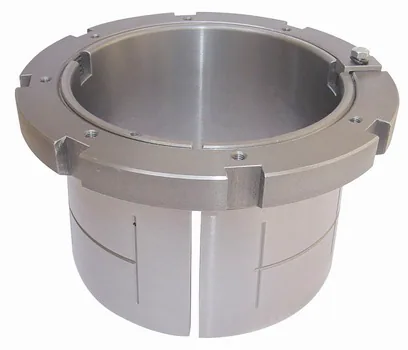

BGL OH 3196HTL hydraulic adapter sleeve: shaft diameter 450 mm, bearing bore diameter 480 mm, thread Tr 480x5, overall length 320 mm, taper 1:12. Net weight 89.7 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OH 3196HTL BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OH 3196HTL
- Lock nut outer diameter
- 560 mm
- Overall length
- 320 mm
- SKU
- 6866017926-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 89.7 kg
- Volumetric weight (desi)
- 48.6907
Weight
- Catalog net weight
- 89.7 kg
Dimensions
- Compatible bearing bore
- 480 mm
- Shaft diameter
- 450 mm
Properties
- Nominal thread
- Tr 480x5 mm
- Oil injection hole thread
- M8
- Taper ratio
- 1:12
