OHA 2352 XH BGL
6866017780-MansonAdapter sleeves
Quote and order options

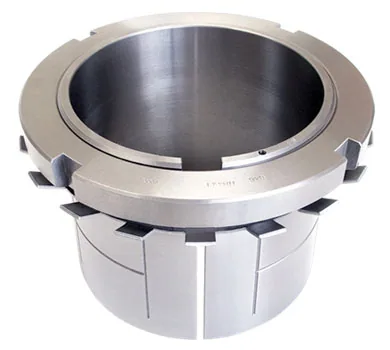

BGL OHA 2352 XH hydraulic adapter sleeve: shaft diameter 239.71 mm, bearing bore diameter 260 mm, thread Tr 260x4, overall length 211 mm, taper 1:12.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OHA 2352 XH BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OHA 2352 XH
- Lock nut outer diameter
- 330 mm
- Overall length
- 211 mm
- SKU
- 6866017780-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 24.2 kg
- Volumetric weight (desi)
- 9.4325
Weight
- Catalog net weight
- 24.2 kg
Dimensions
- Compatible bearing bore
- 260 mm
- Shaft diameter
- 239.71 mm
Properties
- Nominal thread
- Tr 260x4 mm
- Oil injection hole thread
- M6
- Taper ratio
- 1:12
