OHE 2340H BGL
6866017714-MansonAdapter sleeves
Quote and order options

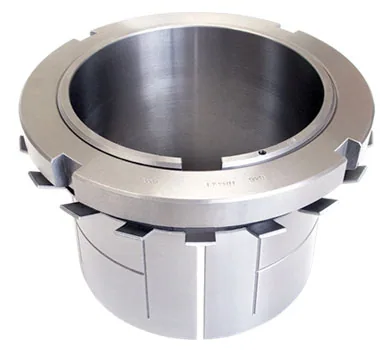

BGL OHE 2340H hydraulic adapter sleeve; shaft diameter 177.8 mm, bearing bore diameter 200 mm, thread M 200x3, overall length 176 mm, taper 1:12. Net weight 13.6 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OHE 2340H BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OHE 2340H
- Lock nut outer diameter
- 250 mm
- Overall length
- 176 mm
- SKU
- 6866017714-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 13.6 kg
- Volumetric weight (desi)
- 4.7628
Weight
- Catalog net weight
- 13.6 kg
Dimensions
- Compatible bearing bore
- 200 mm
- Shaft diameter
- 177.8 mm
Properties
- Nominal thread
- M 200x3 mm
- Oil injection hole thread
- M6
- Taper ratio
- 1:12
