OHE 2340HL BGL
6866017715-MansonAdapter sleeves
Quote and order options

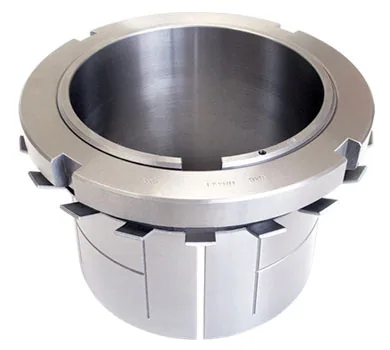

BGL OHE 2340HL hydraulic adapter sleeve; shaft diameter 177.8 mm, bearing bore diameter 200 mm, thread M 200x3, overall length 176 mm, taper 1:12.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OHE 2340HL BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OHE 2340HL
- Lock nut outer diameter
- 240 mm
- Overall length
- 176 mm
- SKU
- 6866017715-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 12.96 kg
- Volumetric weight (desi)
- 4.4165
Weight
- Catalog net weight
- 12.964 kg
Dimensions
- Compatible bearing bore
- 200 mm
- Shaft diameter
- 177.8 mm
Properties
- Nominal thread
- M 200x3 mm
- Oil injection hole thread
- M6
- Taper ratio
- 1:12
