OHE 3032H BGL
6866017611-MansonAdapter sleeves
Quote and order options

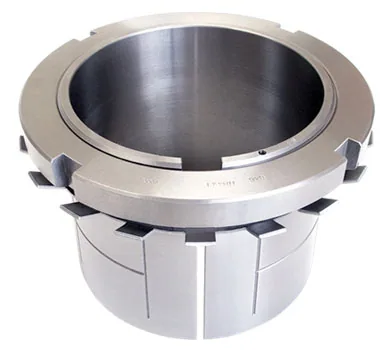

BGL OHE 3032H hydraulic adapter sleeve; shaft diameter 139.7 mm, bearing bore diameter 160 mm, thread M 160x3, overall length 93 mm, taper 1:12. Net weight 5.21 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OHE 3032H BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OHE 3032H
- Lock nut outer diameter
- 190 mm
- Overall length
- 93 mm
- SKU
- 6866017611-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 5.21 kg
- Volumetric weight (desi)
- 1.6611
Weight
- Catalog net weight
- 5.21 kg
Dimensions
- Compatible bearing bore
- 160 mm
- Shaft diameter
- 139.7 mm
Properties
- Nominal thread
- M 160x3 mm
- Oil injection hole thread
- M6
- Taper ratio
- 1:12
