OHE 3096H BGL
6866017924-MansonAdapter sleeves
Quote and order options

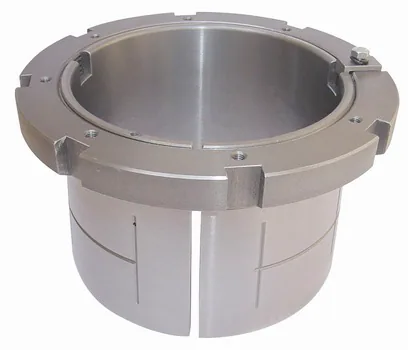

BGL OHE 3096H hydraulic adapter sleeve: shaft diameter 457.2 mm, bearing bore diameter 480 mm, thread Tr 480x5, overall length 237 mm, taper 1:12.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OHE 3096H BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OHE 3096H
- Lock nut outer diameter
- 560 mm
- Overall length
- 237 mm
- SKU
- 6866017924-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 67.2 kg
- Volumetric weight (desi)
- 38.0556
Weight
- Catalog net weight
- 67.2 kg
Dimensions
- Compatible bearing bore
- 480 mm
- Shaft diameter
- 457.2 mm
Properties
- Nominal thread
- Tr 480x5 mm
- Oil injection hole thread
- M8
- Taper ratio
- 1:12
