OHE 3196H BGL
6866017927-MansonAdapter sleeves
Quote and order options

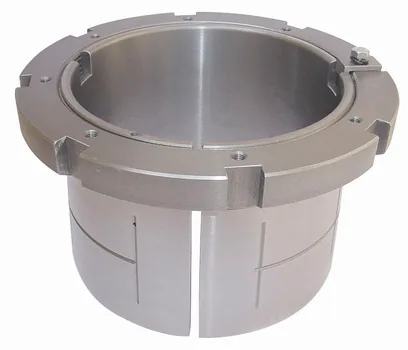

BGL OHE 3196H hydraulic adapter sleeve: shaft diameter 457.2 mm, bearing bore diameter 480 mm, thread Tr 480x5, overall length 335 mm, taper 1:12. Net weight 135 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
OHE 3196H BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- OHE 3196H
- Lock nut outer diameter
- 620 mm
- Overall length
- 335 mm
- SKU
- 6866017927-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 135 kg
- Volumetric weight (desi)
- 60.8827
Weight
- Catalog net weight
- 135 kg
Dimensions
- Compatible bearing bore
- 480 mm
- Shaft diameter
- 457.2 mm
Properties
- Nominal thread
- Tr 480x5 mm
- Oil injection hole thread
- M8
- Taper ratio
- 1:12
