PCFT45-XL INA
6866011249-YatakliFlanged ball bearing units
Quote and order options

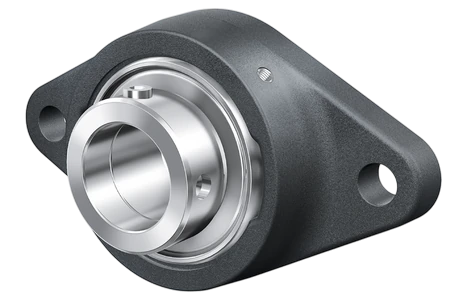

INA PCFT45-XL flanged ball bearing unit with bolt hole spacing 148.5 mm, basic dynamic load rating C 32.5 kN, and bolt hole diameter 14 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
PCFT45-XL INA technical data
- Brand
- INA
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- PCFT45-XL
- Overall width
- 51.9 mm
- Mounting hole spacing
- 148.5 mm
- Flange height
- 180 mm
- Locking collar outer diameter
- 63 mm
- Basic dynamic load rating C
- 32.5 kN
- Housing flange thickness
- 13 mm
- Basic static load rating C0
- 20.4 kN
- Mounting hole diameter
- 14 mm
- Fatigue load limit Pu
- 0.97 kN
- Housing height
- 30.2 mm
- Flange width
- 111 mm
- SKU
- 6866011249-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Germany
- Barcode (EAN)
- 4012802791303
- Net weight
- 1.639 kg
- Volumetric weight (desi)
- 1.69
