PCJT17-XL INA
6866011282-YatakliFlanged ball bearing units
Quote and order options

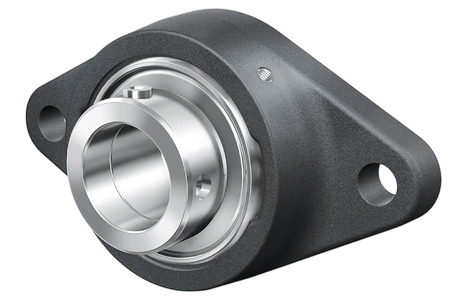

INA PCJT17-XL flanged ball bearing unit with bolt hole spacing 76.5 mm, basic dynamic load rating C 10.1 kN, and bolt hole diameter 11.5 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
PCJT17-XL INA technical data
- Brand
- INA
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- PCJT17-XL
- Overall width
- 39.1 mm
- Mounting hole spacing
- 76.5 mm
- Flange height
- 99 mm
- Locking collar outer diameter
- 28.4 mm
- Basic dynamic load rating C
- 10.1 kN
- Housing flange thickness
- 9.5 mm
- Basic static load rating C0
- 4.75 kN
- Mounting hole diameter
- 11.5 mm
- Fatigue load limit Pu
- 0.248 kN
- Housing height
- 25 mm
- Flange width
- 57 mm
- SKU
- 6866011282-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Germany
- Barcode (EAN)
- 4012802798036
- Net weight
- 0.36 kg
- Volumetric weight (desi)
- 0.36
