PCJT40-XL-N-FA125 INA
6866011292-YatakliFlanged ball bearing units
Quote and order options

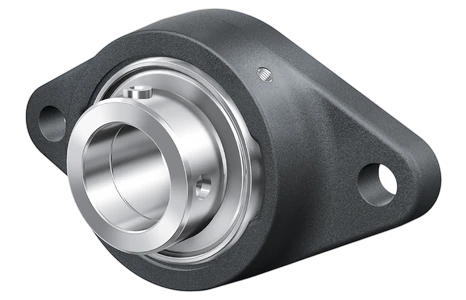

INA PCJT40-XL-N-FA125 flanged ball bearing unit with bolt hole spacing 143.5 mm, basic dynamic load rating C 32.5 kN, and bolt hole diameter 14 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
PCJT40-XL-N-FA125 INA technical data
- Brand
- INA
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- PCJT40-XL-N-FA125
- Overall width
- 56.8 mm
- Mounting hole spacing
- 143.5 mm
- Flange height
- 172 mm
- Inner ring width with locking collar
- 43.8 mm
- Locking collar outer diameter
- 58 mm
- Basic dynamic load rating C
- 32.5 kN
- Housing flange thickness
- 13 mm
- Basic static load rating C0
- 19.8 kN
- Mounting hole diameter
- 14 mm
- Fatigue load limit Pu
- 1.03 kN
- Housing height
- 36.5 mm
- Flange width
- 105 mm
- SKU
- 6866011292-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Germany
- Barcode (EAN)
- 4012802810028
- Net weight
- 1.58 kg
- Volumetric weight (desi)
- 1.58
