PCJTY20-XL-N INA
6866011301-YatakliFlanged ball bearing units
Quote and order options

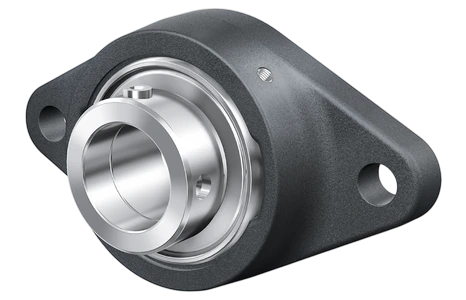

INA PCJTY20-XL-N flanged ball bearing unit with bolt hole spacing 90 mm, basic dynamic load rating C 13.6 kN, and bolt hole diameter 11.5 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
PCJTY20-XL-N INA technical data
- Brand
- INA
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- PCJTY20-XL-N
- Overall width
- 37 mm
- Mounting hole spacing
- 90 mm
- Flange height
- 112 mm
- Basic dynamic load rating C
- 13.6 kN
- Housing flange thickness
- 10 mm
- Basic static load rating C0
- 6.6 kN
- Mounting hole diameter
- 11.5 mm
- Fatigue load limit Pu
- 0.345 kN
- Housing height
- 28 mm
- Flange width
- 61 mm
- SKU
- 6866011301-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Germany
- Barcode (EAN)
- 4012802802603
- Net weight
- 0.454 kg
- Volumetric weight (desi)
- 0.454
