RCJTZ50-XL INA
6866011900-YatakliFlanged ball bearing units
Quote and order options

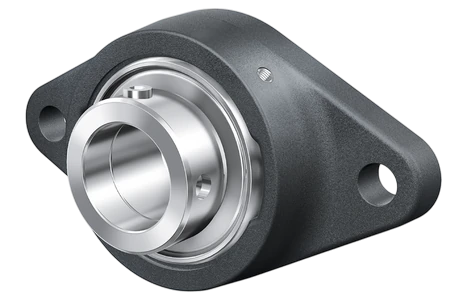

INA RCJTZ50-XL flanged ball bearing unit with bolt hole spacing 157 mm, pilot diameter 105 mm, basic dynamic load rating C 35 kN, and bolt hole diameter 14 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
RCJTZ50-XL INA technical data
- Brand
- INA
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- RCJTZ50-XL
- Overall width
- 62.2 mm
- Mounting hole spacing
- 157 mm
- Eccentric collar outer diameter
- 69 mm
- Flange height
- 190 mm
- Centering diameter
- 105 mm
- Centering diameter height
- 4 mm
- Basic dynamic load rating C
- 35 kN
- Housing flange thickness
- 13 mm
- Basic static load rating C0
- 23.2 kN
- Mounting hole diameter
- 14 mm
- Fatigue load limit Pu
- 0.99 kN
- Housing height
- 35 mm
- Flange width
- 116 mm
- SKU
- 6866011900-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Germany
- Barcode (EAN)
- 4012802791129
- Net weight
- 2.304 kg
- Volumetric weight (desi)
- 2.32
