RFE25-XL INA
6866011935-YatakliFlanged ball bearing units
Quote and order options

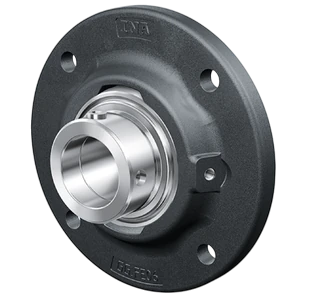

INA RFE25-XL flanged ball bearing unit with bolt hole spacing 92 mm, pilot diameter 75 mm, basic dynamic load rating C 14.9 kN, and bolt hole diameter 9 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
RFE25-XL INA technical data
- Brand
- INA
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- RFE25-XL
- Overall width
- 36.4 mm
- Mounting hole spacing
- 92 mm
- Flange height
- 115 mm
- Centering diameter
- 75 mm
- Centering diameter height
- 3 mm
- Inner ring width with locking collar
- 44.5 mm
- Basic dynamic load rating C
- 14.9 kN
- Housing flange thickness
- 9 mm
- Basic static load rating C0
- 7.8 kN
- Mounting hole diameter
- 9 mm
- Fatigue load limit Pu
- 0.41 kN
- Housing height
- 22 mm
- Flange width
- 115 mm
- SKU
- 6866011935-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Germany
- Barcode (EAN)
- 4012802793741
- Net weight
- 0.83 kg
- Volumetric weight (desi)
- 0.83
