RME80-XL INA
6866011957-YatakliFlanged ball bearing units
Quote and order options

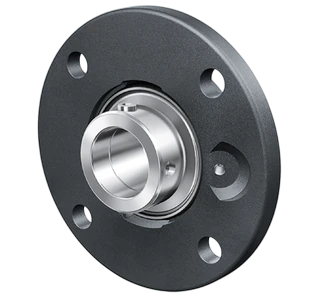

INA RME80-XL flanged ball bearing unit with pilot diameter 160 mm, basic dynamic load rating C 72 kN, and bolt hole diameter 18 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
RME80-XL INA technical data
- Brand
- INA
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- RME80-XL
- Overall width
- 49.3 mm
- Flange height
- 220 mm
- Centering diameter
- 160 mm
- Inner ring width with locking collar
- 70.7 mm
- Basic dynamic load rating C
- 72 kN
- Housing flange thickness
- 18 mm
- Basic static load rating C0
- 54 kN
- Mounting hole diameter
- 18 mm
- Fatigue load limit Pu
- 2.45 kN
- Housing height
- 31 mm
- SKU
- 6866011957-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Germany
- Barcode (EAN)
- 4012802806915
- Net weight
- 5.51 kg
- Volumetric weight (desi)
- 5.51
