SB 201-8/V4/C12/G2--NPP
6866015217-RulmanSB series mounted bearing units
Quote and order options

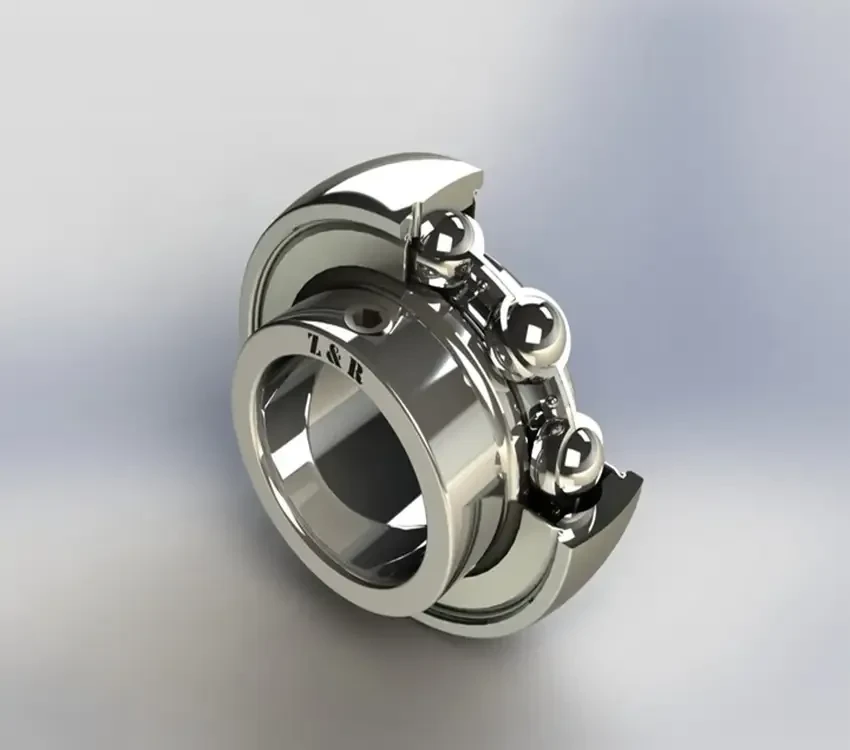

SB 201-8/V4/C12/G2--NPP, Z&R ball bearing. Bore diameter 12.7 mm, outside diameter 40 mm, width 22 mm. Basic load ratings: dynamic 9.51 kN, static 4.805 kN. Weight 0.1 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
SB 201-8/V4/C12/G2--NPP technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / SB series mounted bearing units
- Part number
- SB 201-8/V4/C12/G2--NPP
- Bore diameter (d)
- 12.7 mm
- Outside diameter (D)
- 40 mm
- Width (B)
- 22 mm
- Basic dynamic load rating C
- 9.51 kN
- Basic static load rating C0
- 4.805 kN
- Outer ring width
- 12 mm
- Groove distance
- 6 mm
- Lubrication hole distance
- 3.6 mm
- Set screw hole distance
- 4.5 mm
- Center diameter
- 29 mm
- Lubrication hole diameter
- 1.2 mm
- SKU
- 6866015217-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900011
- Country of origin
- China
- Net weight
- 0.1 kg
