SB 204-12/V4/C12/G2--NPP
6866015222-RulmanSB series mounted bearing units
Quote and order options

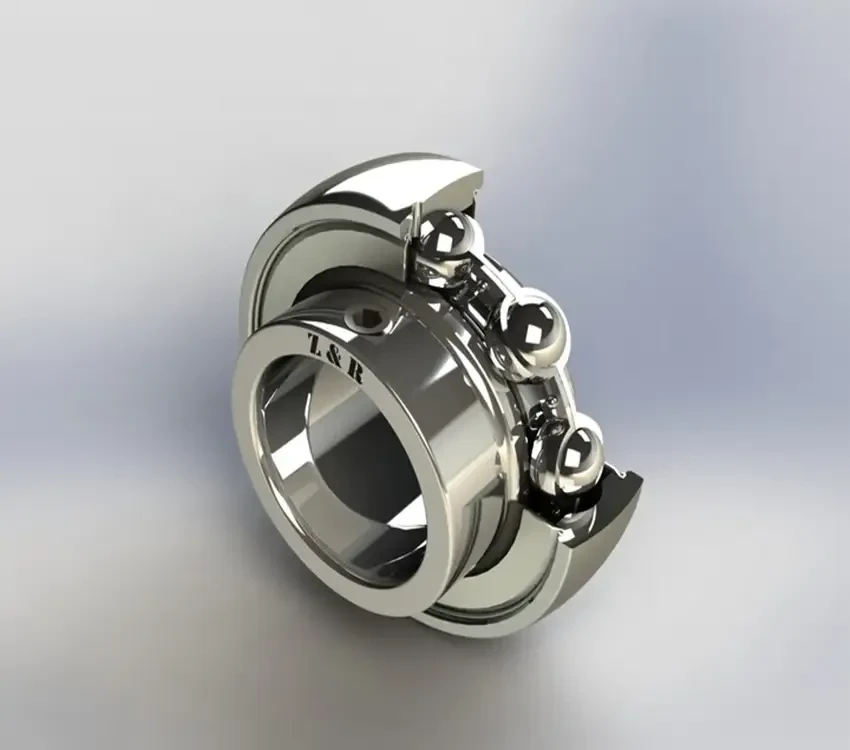

SB 204-12/V4/C12/G2--NPP, Z&R ball bearing. Bore diameter 19.05 mm, outside diameter 47 mm, width 25 mm. Basic load ratings: dynamic 12.84 kN, static 6.66 kN. Weight 0.15 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
SB 204-12/V4/C12/G2--NPP technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / SB series mounted bearing units
- Part number
- SB 204-12/V4/C12/G2--NPP
- Bore diameter (d)
- 19.05 mm
- Outside diameter (D)
- 47 mm
- Width (B)
- 25 mm
- Basic dynamic load rating C
- 12.84 kN
- Basic static load rating C0
- 6.66 kN
- Outer ring width
- 14 mm
- Groove distance
- 7 mm
- Lubrication hole distance
- 4.4 mm
- Set screw hole distance
- 4.5 mm
- Center diameter
- 33.9 mm
- Lubrication hole diameter
- 1.5 mm
- SKU
- 6866015222-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900011
- Country of origin
- China
- Net weight
- 0.15 kg
