SYF 30 TF SKF
6866013758-YatakliPillow block ball bearing units
Quote and order options

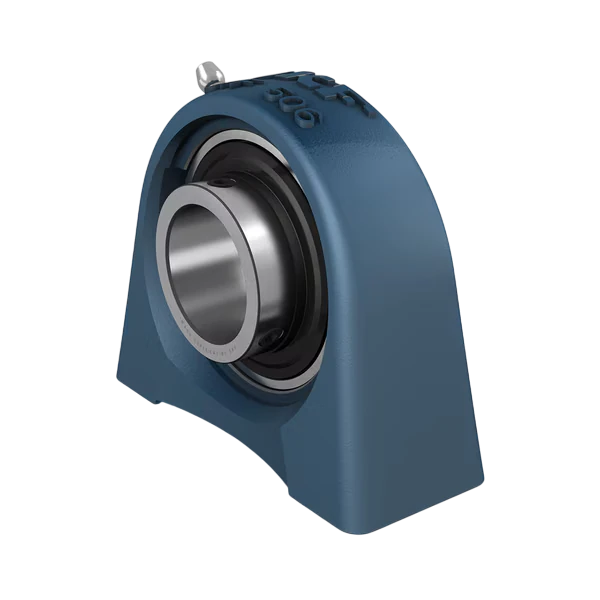

SKF SYF 30 TF pillow block ball bearing unit: bore diameter (d) 30 mm, shaft center height 42.9 mm, bolt hole spacing 76.2 mm, and basic dynamic load rating C 19.5 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
SYF 30 TF SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- SYF 30 TF
- Overall length
- 98 mm
- Overall height
- 82 mm
- Set screw hole distance
- 5 mm
- Base width
- 40 mm
- Center height
- 42.9 mm
- Mounting hole spacing
- 76.2 mm
- Housing top width
- 25 mm
- Inner ring face to raceway centre
- 22.2 mm
- Bore diameter (d)
- 30 mm
- Width (B)
- 38.1 mm
- Basic dynamic load rating C
- 19.5 kN
- Basic static load rating C0
- 11.2 kN
- Fatigue load limit Pu
- 0.475 kN
- SKU
- 6866013758-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1 kg
- Volumetric weight (desi)
- 1
