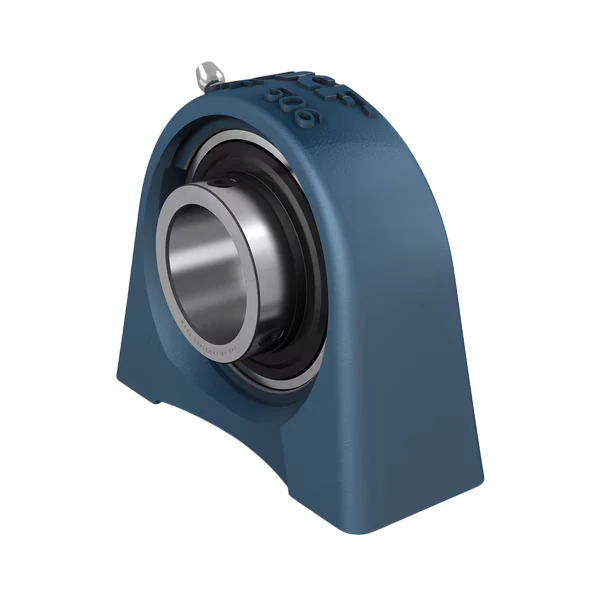

SYF 45 FM SKF
6866013764-YatakliPillow block ball bearing units
Quote and order options
SKF SYF 45 FM pillow block ball bearing unit: bore diameter (d) 45 mm, shaft center height 54 mm, bolt hole spacing 95.3 mm, and basic dynamic load rating C 33.2 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
SYF 45 FM SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- SYF 45 FM
- Overall length
- 120 mm
- Overall height
- 107.5 mm
- Set screw hole distance
- 6.75 mm
- Base width
- 48 mm
- Center height
- 54 mm
- Mounting hole spacing
- 95.3 mm
- Housing top width
- 32 mm
- Inner ring width with locking collar
- 43.7 mm
- Inner ring face to raceway centre
- 32.7 mm
- Bore diameter (d)
- 45 mm
- Basic dynamic load rating C
- 33.2 kN
- Basic static load rating C0
- 21.6 kN
- Fatigue load limit Pu
- 0.915 kN
- SKU
- 6866013764-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.95 kg
- Volumetric weight (desi)
- 1.9464
