SYFWK 20 LTA SKF
6866013776-YatakliPillow block ball bearing units
Quote and order options

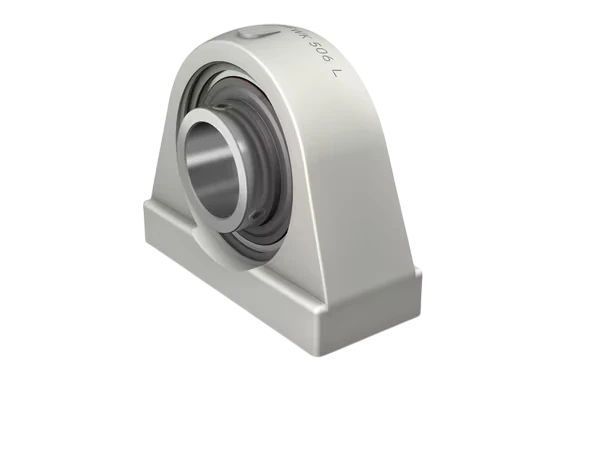

SKF SYFWK 20 LTA pillow block ball bearing unit: bore diameter (d) 20 mm, shaft center height 33.3 mm, bolt hole spacing 50.8 mm, and basic dynamic load rating C 12.7 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
SYFWK 20 LTA SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- SYFWK 20 LTA
- Limiting speed
- 5,000 rpm
- Overall length
- 72.8 mm
- Overall height
- 66 mm
- Base width
- 34.5 mm
- Center height
- 33.3 mm
- Mounting hole spacing
- 50.8 mm
- Housing top width
- 23.8 mm
- Inner ring face to raceway centre
- 18.3 mm
- Bore diameter (d)
- 20 mm
- Width (B)
- 31 mm
- Basic dynamic load rating C
- 12.7 kN
- Basic static load rating C0
- 6.55 kN
- Fatigue load limit Pu
- 0.28 kN
- SKU
- 6866013776-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.26 kg
- Volumetric weight (desi)
- 0.263
