UC 320/V3/C12/G2--F
6866016049-RulmanUC series mounted bearing units
Quote and order options

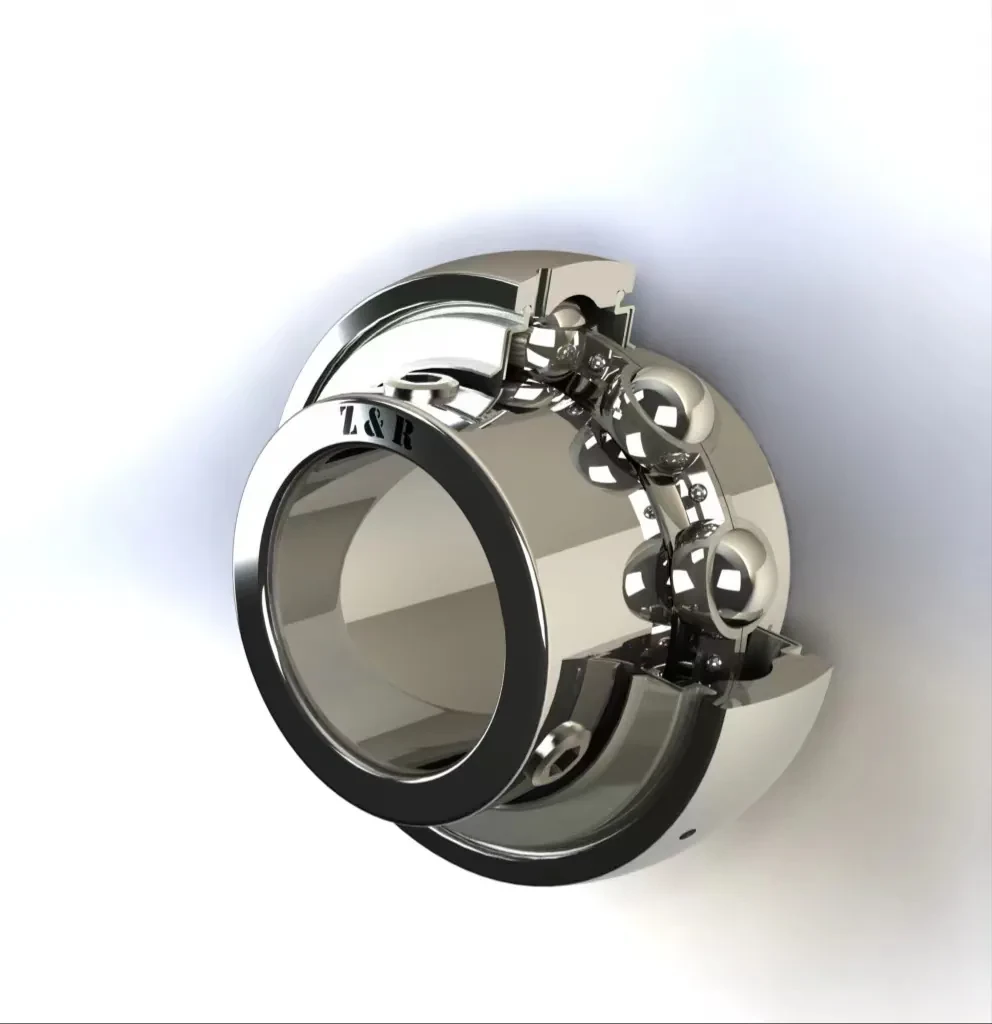

UC 320/V3/C12/G2--F, Z&R ball bearing. Bore diameter 100 mm, outside diameter 215 mm, width 108 mm. Basic load ratings: dynamic 171.71 kN, static 140.13 kN. Weight 11.1 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UC 320/V3/C12/G2--F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / UC series mounted bearing units
- Part number
- UC 320/V3/C12/G2--F
- Bore diameter (d)
- 100 mm
- Outside diameter (D)
- 215 mm
- Width (B)
- 108 mm
- Basic dynamic load rating C
- 171.71 kN
- Basic static load rating C0
- 140.13 kN
- Outer ring width
- 54 mm
- Groove distance
- 42 mm
- Lubrication hole distance
- 16.7 mm
- Set screw hole distance
- 18 mm
- Center diameter
- 157.5 mm
- Lubrication hole diameter
- 3 mm
- SKU
- 6866016049-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900013
- Country of origin
- China
- Net weight
- 11.1 kg
