UCF 204-12 F
6866015283-YatakliFlanged ball bearing units
Quote and order options

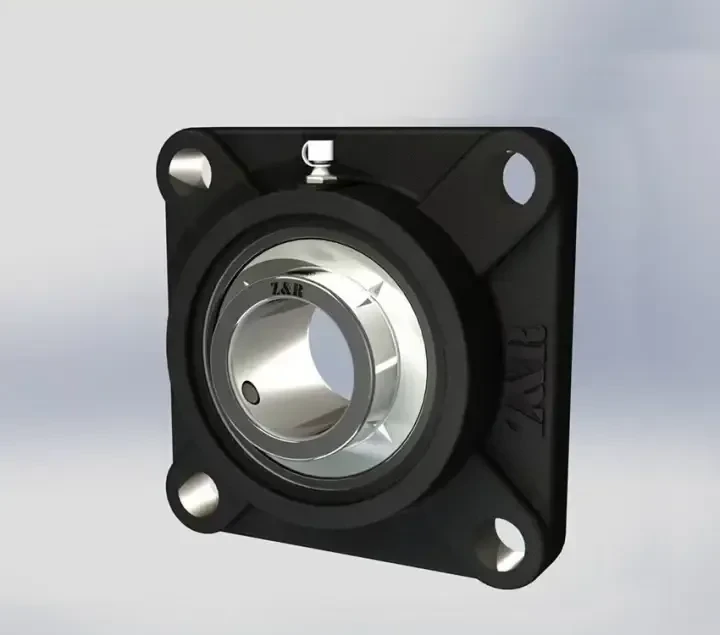

Z&R UCF 204-12 F mounted bearing unit. Bore diameter 19.05 mm. Net weight 0.5 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCF 204-12 F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCF 204-12 F
- Groove distance
- 12.7 mm
- Overall length
- 86 mm
- Overall width
- 31 mm
- Base height
- 9 mm
- Center height
- 15 mm
- Mounting hole spacing
- 64 mm
- Bearing height
- 25.5 mm
- Lubrication hole height from base
- 17 mm
- Bore diameter (d)
- 19.05 mm
- Bearing seat height
- 11 mm
- SKU
- 6866015283-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 0.5 kg
