UCF 207/H SKF
6866014050-YatakliFlanged ball bearing units
Quote and order options

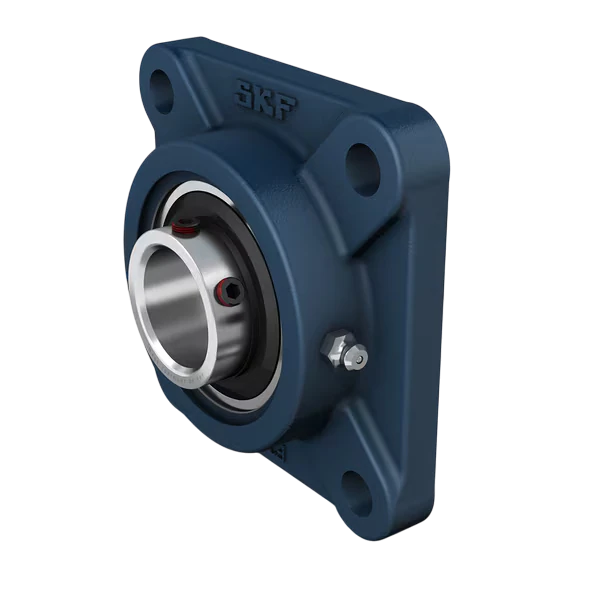

SKF UCF 207/H flanged ball bearing unit: bore diameter (d) 35 mm, bolt hole spacing 92 mm, basic dynamic load rating C 25.5 kN, and bolt hole diameter 14 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCF 207/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCF 207/H
- Overall length
- 118 mm
- Overall width
- 44.4 mm
- Set screw hole distance
- 6 mm
- Mounting hole spacing
- 92 mm
- Housing total width
- 32 mm
- Inner ring face to raceway centre
- 25.4 mm
- Bore diameter (d)
- 35 mm
- Width (B)
- 42.9 mm
- Basic dynamic load rating C
- 25.5 kN
- Basic static load rating C0
- 15.3 kN
- Mounting hole diameter
- 14 mm
- Fatigue load limit Pu
- 0.655 kN
- Flange width
- 15 mm
- SKU
- 6866014050-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.31 kg
- Volumetric weight (desi)
- 1.305
