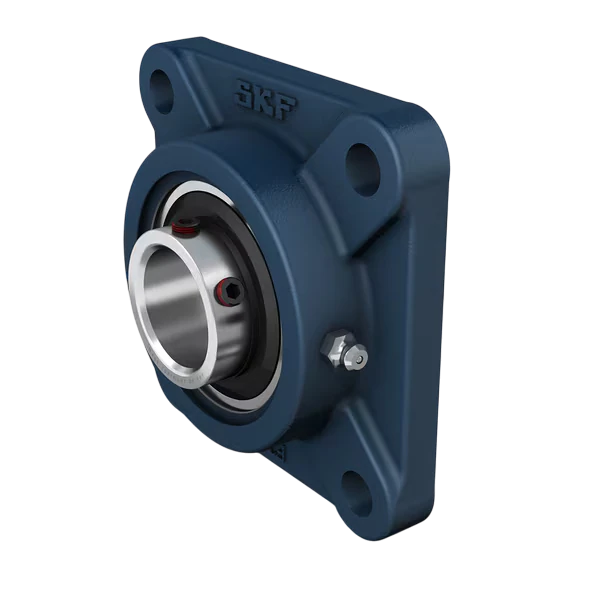

UCF 210/H SKF
6866014055-YatakliFlanged ball bearing units
Quote and order options
SKF UCF 210/H flanged ball bearing unit: bore diameter (d) 50 mm, bolt hole spacing 111 mm, basic dynamic load rating C 35.1 kN, and bolt hole diameter 16 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCF 210/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCF 210/H
- Overall length
- 143 mm
- Overall width
- 54.6 mm
- Set screw hole distance
- 9 mm
- Mounting hole spacing
- 111 mm
- Housing total width
- 39.5 mm
- Inner ring face to raceway centre
- 32.6 mm
- Bore diameter (d)
- 50 mm
- Width (B)
- 51.6 mm
- Basic dynamic load rating C
- 35.1 kN
- Basic static load rating C0
- 23.2 kN
- Mounting hole diameter
- 16 mm
- Fatigue load limit Pu
- 0.98 kN
- Flange width
- 16 mm
- SKU
- 6866014055-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 2.35 kg
- Volumetric weight (desi)
- 2.349
