UCF 316 SKF
6866014078-YatakliFlanged ball bearing units
Quote and order options

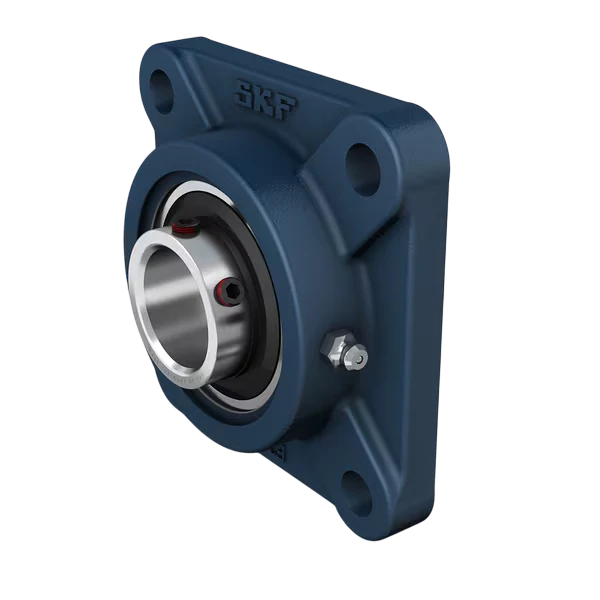

SKF UCF 316 flanged ball bearing unit: bore diameter (d) 80 mm, bolt hole spacing 196 mm, basic dynamic load rating C 124 kN, and bolt hole diameter 31 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCF 316 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCF 316
- Overall length
- 252 mm
- Overall width
- 90 mm
- Set screw hole distance
- 14 mm
- Mounting hole spacing
- 196 mm
- Housing total width
- 68.5 mm
- Inner ring face to raceway centre
- 52 mm
- Bore diameter (d)
- 80 mm
- Width (B)
- 86 mm
- Basic dynamic load rating C
- 124 kN
- Basic static load rating C0
- 86.5 kN
- Mounting hole diameter
- 31 mm
- Fatigue load limit Pu
- 3.25 kN
- Flange width
- 28 mm
- SKU
- 6866014078-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 15 kg
- Volumetric weight (desi)
- 15.4
