UCF 320 SKF
6866014082-YatakliFlanged ball bearing units
Quote and order options

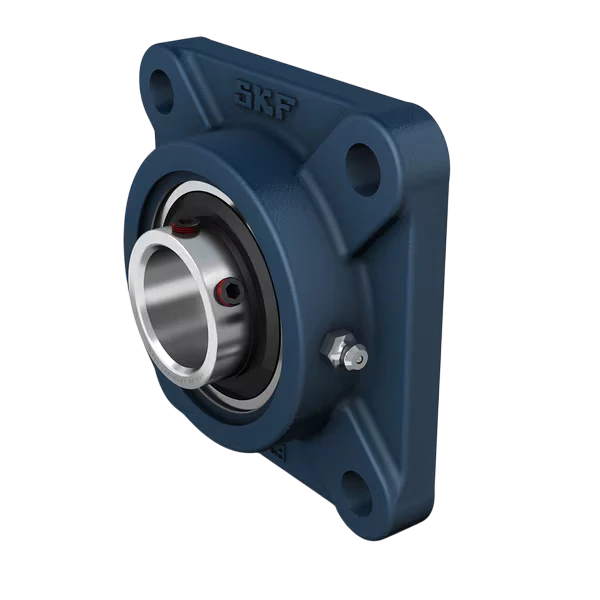

SKF UCF 320 flanged ball bearing unit: bore diameter (d) 100 mm, bolt hole spacing 242 mm, basic dynamic load rating C 174 kN, and bolt hole diameter 38 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCF 320 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCF 320
- Overall length
- 312 mm
- Overall width
- 125 mm
- Set screw hole distance
- 18 mm
- Mounting hole spacing
- 242 mm
- Housing total width
- 94.5 mm
- Inner ring face to raceway centre
- 66 mm
- Bore diameter (d)
- 100 mm
- Width (B)
- 108 mm
- Basic dynamic load rating C
- 174 kN
- Basic static load rating C0
- 140 kN
- Mounting hole diameter
- 38 mm
- Fatigue load limit Pu
- 4.75 kN
- Flange width
- 33 mm
- SKU
- 6866014082-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 28.6 kg
- Volumetric weight (desi)
- 29.6
