UCFB 206/H SKF
6866014109-YatakliFlanged ball bearing units
Quote and order options

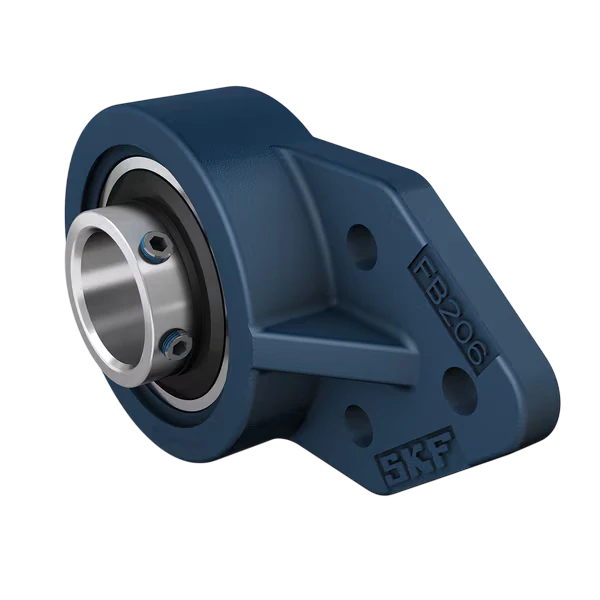

SKF UCFB 206/H flanged ball bearing unit; bore diameter (d) 30 mm, basic dynamic load rating C 19.5 kN, bolt hole diameter 9.5 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCFB 206/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCFB 206/H
- Overall length
- 83 mm
- Overall height
- 137 mm
- Overall width
- 40.9 mm
- Set screw hole distance
- 5 mm
- Flange overall length
- 70 mm
- Housing total width
- 30 mm
- Inner ring face to raceway centre
- 22.2 mm
- Bore diameter (d)
- 30 mm
- Width (B)
- 38.1 mm
- Basic dynamic load rating C
- 19.5 kN
- Basic static load rating C0
- 11.2 kN
- Mounting hole diameter
- 9.5 mm
- Fatigue load limit Pu
- 0.475 kN
- Flange width
- 10 mm
- SKU
- 6866014109-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.919 kg
- Volumetric weight (desi)
- 0.919
