UCFC 204/H SKF
6866014113-YatakliFlanged ball bearing units
Quote and order options

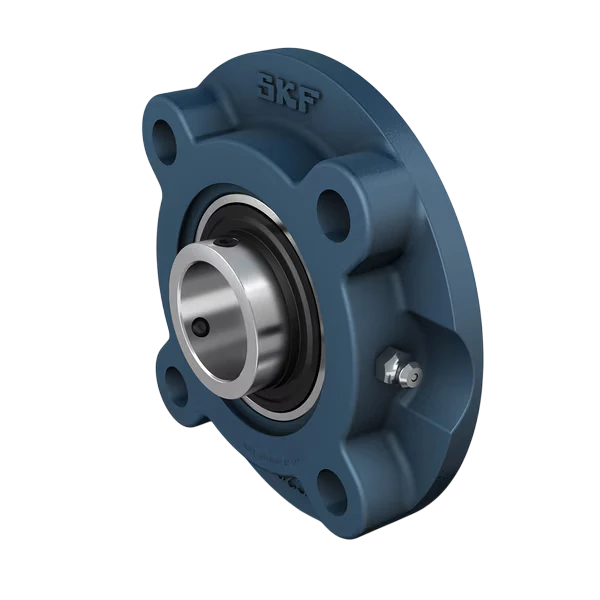

SKF UCFC 204/H flanged ball bearing unit: bore diameter (d) 20 mm, pilot diameter 62 mm, and basic dynamic load rating C 12.7 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCFC 204/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCFC 204/H
- Overall width
- 28.3 mm
- Set screw hole distance
- 4.5 mm
- Mounting hole length
- 12 mm
- Housing total width
- 26 mm
- Centering diameter
- 62 mm
- Inner ring face to raceway centre
- 18.3 mm
- Bore diameter (d)
- 20 mm
- Width (B)
- 31 mm
- Basic dynamic load rating C
- 12.7 kN
- Basic static load rating C0
- 6.55 kN
- Fatigue load limit Pu
- 0.28 kN
- Housing diameter
- 100 mm
- Flange width
- 7 mm
- SKU
- 6866014113-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.696 kg
- Volumetric weight (desi)
- 0.6956
