UCFG 206 R3
6866015119-YatakliFlanged ball bearing units
Quote and order options

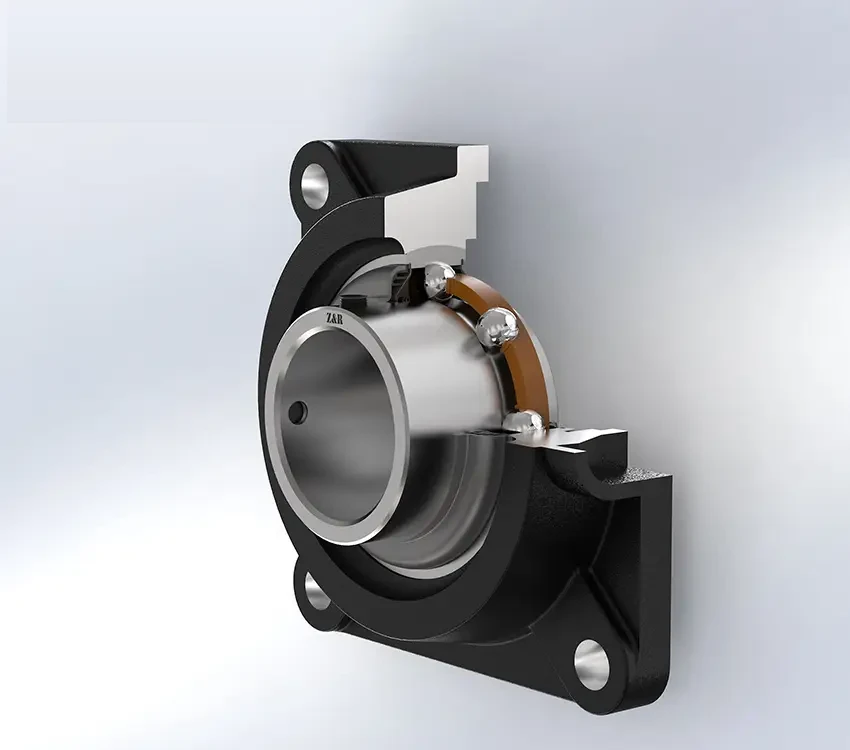

Z&R UCFG 206 R3 mounted bearing unit. Bore diameter 25 mm. Basic dynamic load rating 19.5 kN, basic static load rating 11.3 kN. Weight 1.2 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCFG 206 R3 technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCFG 206 R3
- Overall length
- 108 mm
- Overall width
- 40.2 mm
- Mounting hole spacing
- 83 mm
- Housing total width
- 31 mm
- Bore diameter (d)
- 25 mm
- Basic dynamic load rating C
- 19.5 kN
- Housing flange thickness
- 13 mm
- Basic static load rating C0
- 11.3 kN
- Mounting hole diameter
- 16 mm
- Fatigue load limit Pu
- 0.475 kN
- SKU
- 6866015119-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 1.2 kg
