UCFG 210 R3CC-16.5MM
6866015130-YatakliFlanged ball bearing units
Quote and order options

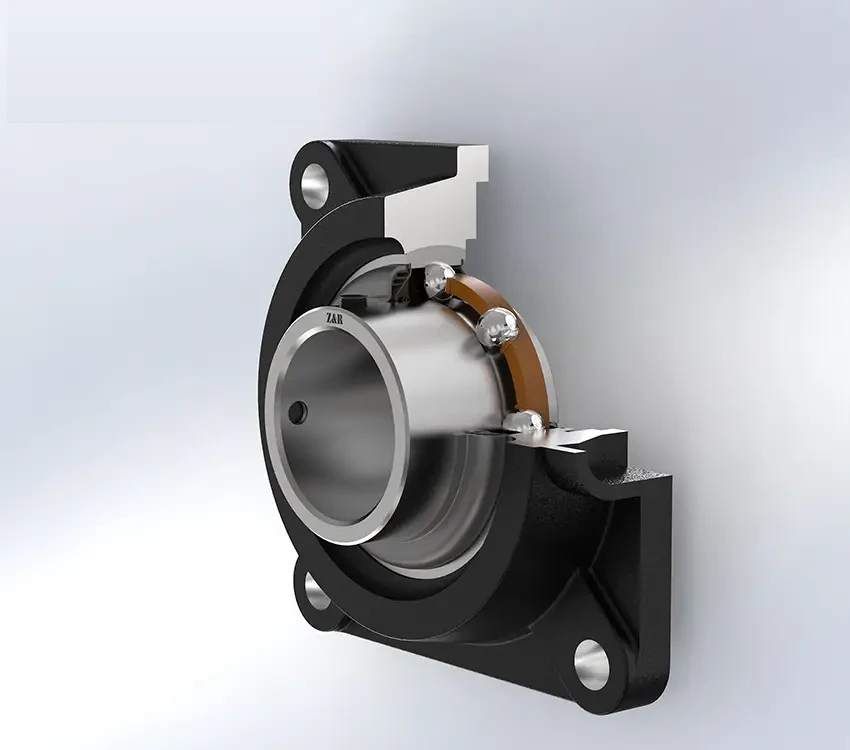

Z&R UCFG 210 R3CC-16.5MM mounted bearing unit. Bore diameter 50 mm. Basic dynamic load rating 35.1 kN, basic static load rating 23.2 kN. Weight 2.78 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCFG 210 R3CC-16.5MM technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCFG 210 R3CC-16.5MM
- Overall length
- 143 mm
- Overall width
- 54.6 mm
- Mounting hole spacing
- 111 mm
- Housing total width
- 40 mm
- Bore diameter (d)
- 50 mm
- Basic dynamic load rating C
- 35.1 kN
- Housing flange thickness
- 16 mm
- Basic static load rating C0
- 23.2 kN
- Mounting hole diameter
- 16.5 mm
- Fatigue load limit Pu
- 0.974 kN
- SKU
- 6866015130-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 2.78 kg
