UCFN 209 2F
6866015141-YatakliFlanged ball bearing units
Quote and order options

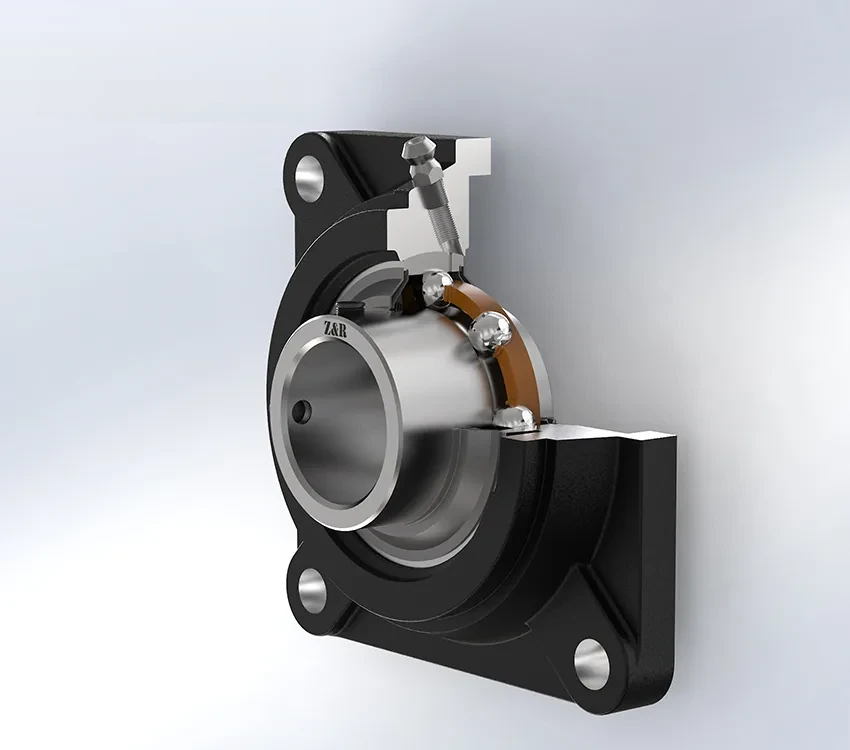

Z&R UCFN 209 2F mounted bearing unit. Bore diameter 45 mm, width 49.2 mm. Basic dynamic load rating 32.5 kN, basic static load rating 20.4 kN. Weight 2.25 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCFN 209 2F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UCFN 209 2F
- Overall length
- 137 mm
- Overall width
- 52.2 mm
- Mounting hole spacing
- 105 mm
- Housing total width
- 38 mm
- Bore diameter (d)
- 45 mm
- Width (B)
- 49.2 mm
- Basic dynamic load rating C
- 32.5 kN
- Housing flange thickness
- 12 mm
- Basic static load rating C0
- 20.4 kN
- Mounting hole diameter
- 16 mm
- Fatigue load limit Pu
- 0.857 kN
- SKU
- 6866015141-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 2.25 kg
