UCP 206-18 SKF
6866014192-YatakliPillow block ball bearing units
Quote and order options

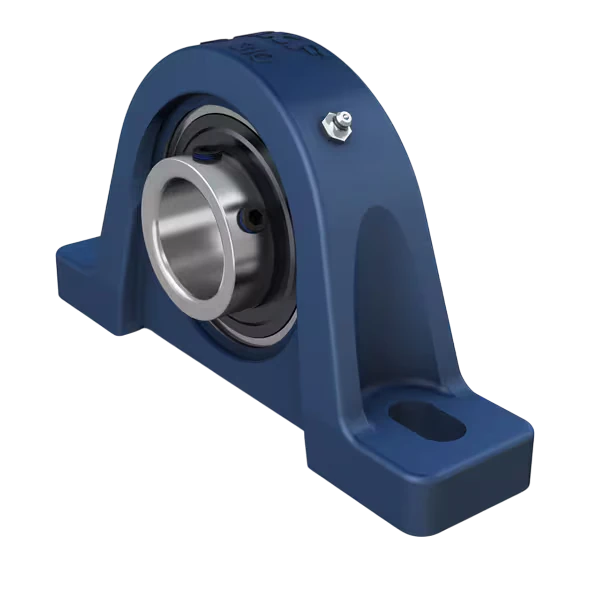

SKF UCP 206-18 pillow block ball bearing unit: bore diameter (d) 28.575 mm, shaft center height 42.9 mm, bolt hole spacing 121 mm, and basic dynamic load rating C 19.5 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCP 206-18 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- UCP 206-18
- Overall length
- 165 mm
- Overall height
- 83.5 mm
- Set screw hole distance
- 5.5 mm
- Base width
- 45 mm
- Base height
- 16.5 mm
- Center height
- 42.9 mm
- Mounting hole spacing
- 121 mm
- Mounting hole length
- 21 mm
- Housing top width
- 24 mm
- Inner ring face to raceway centre
- 22.2 mm
- Bore diameter (d)
- 28.575 mm
- Width (B)
- 38.1 mm
- Basic dynamic load rating C
- 19.5 kN
- Basic static load rating C0
- 11.4 kN
- Mounting hole diameter
- 17 mm
- Fatigue load limit Pu
- 0.48 kN
- SKU
- 6866014192-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.36 kg
- Volumetric weight (desi)
- 1.36
