UCP 315 SKF
6866014224-YatakliPillow block ball bearing units
Quote and order options

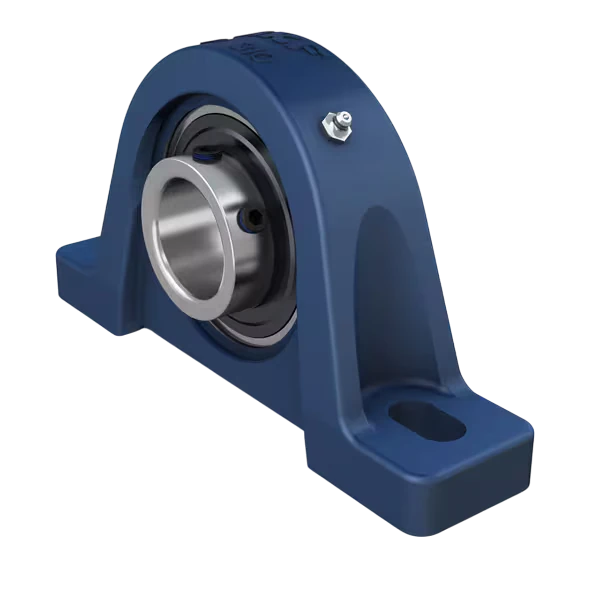

SKF UCP 315 pillow block ball bearing unit: bore diameter (d) 75 mm, shaft center height 100 mm, bolt hole spacing 290.5 mm, and basic dynamic load rating C 114 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCP 315 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- UCP 315
- Overall length
- 368 mm
- Overall height
- 202 mm
- Set screw hole distance
- 14 mm
- Base width
- 86 mm
- Base height
- 40 mm
- Center height
- 100 mm
- Mounting hole spacing
- 290.5 mm
- Mounting hole length
- 39.5 mm
- Housing top width
- 58 mm
- Inner ring face to raceway centre
- 50 mm
- Bore diameter (d)
- 75 mm
- Width (B)
- 82 mm
- Basic dynamic load rating C
- 114 kN
- Basic static load rating C0
- 76.5 kN
- Mounting hole diameter
- 27 mm
- Fatigue load limit Pu
- 3 kN
- SKU
- 6866014224-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 15.5 kg
- Volumetric weight (desi)
- 15.5
