UCP 317 SKF
6866014227-YatakliPillow block ball bearing units
Quote and order options

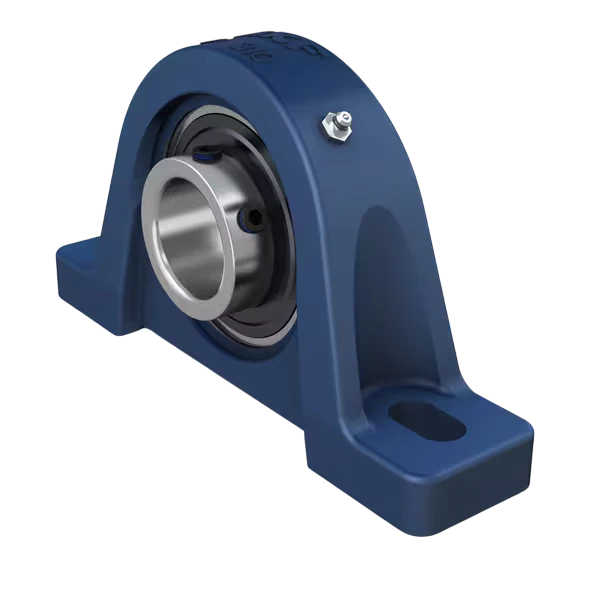

SKF UCP 317 pillow block ball bearing unit: bore diameter (d) 85 mm, shaft center height 112 mm, bolt hole spacing 320.5 mm, and basic dynamic load rating C 133 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCP 317 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- UCP 317
- Overall length
- 411 mm
- Overall height
- 227 mm
- Set screw hole distance
- 16 mm
- Base width
- 94 mm
- Base height
- 47 mm
- Center height
- 112 mm
- Mounting hole spacing
- 320.5 mm
- Mounting hole length
- 44.5 mm
- Housing top width
- 63 mm
- Inner ring face to raceway centre
- 56 mm
- Bore diameter (d)
- 85 mm
- Width (B)
- 96 mm
- Basic dynamic load rating C
- 133 kN
- Basic static load rating C0
- 96.5 kN
- Mounting hole diameter
- 33 mm
- Fatigue load limit Pu
- 3.55 kN
- SKU
- 6866014227-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 21.4 kg
- Volumetric weight (desi)
- 214
