UCP 318 SKF
6866014228-YatakliPillow block ball bearing units
Quote and order options

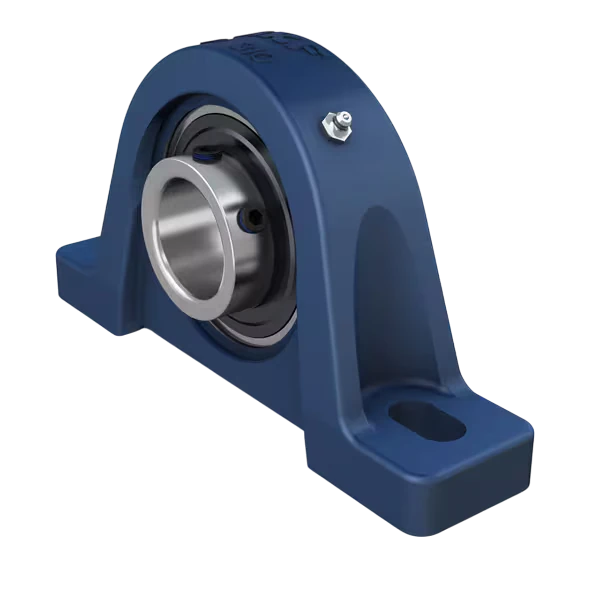

SKF UCP 318 pillow block ball bearing unit: bore diameter (d) 90 mm, shaft center height 118 mm, bolt hole spacing 330.5 mm, and basic dynamic load rating C 143 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCP 318 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- UCP 318
- Overall length
- 421 mm
- Overall height
- 239 mm
- Set screw hole distance
- 16 mm
- Base width
- 96 mm
- Base height
- 50 mm
- Center height
- 118 mm
- Mounting hole spacing
- 330.5 mm
- Mounting hole length
- 44.5 mm
- Housing top width
- 64 mm
- Inner ring face to raceway centre
- 56 mm
- Bore diameter (d)
- 90 mm
- Width (B)
- 96 mm
- Basic dynamic load rating C
- 143 kN
- Basic static load rating C0
- 108 kN
- Mounting hole diameter
- 33 mm
- Fatigue load limit Pu
- 3.8 kN
- SKU
- 6866014228-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 23.7 kg
- Volumetric weight (desi)
- 237
